Advantages

A registered hot stamping foil that creates a controlled cat-eye lens effect with visible optical depth on premium packaging. Distinct cat-eye optical focal point; Registered placement for repeatable brand decoration; Combines premium visual impact with a recognizable security-oriented effect.

Tech Specs & Notes

Registered hot stamping with optical-sensor tracking and artwork matched to the foil repeat. Hot stamping range selected according to foil construction, substrate and registration equipment. Artwork repeat, sensor mark, foil pitch and press geometry must be aligned as one registered system. Optical requirements are specified separately from the production artwork and repeat data.

Markets

Tobacco packaging, spirits cartons, cosmetics, premium gift boxes, brand-protection labels and security-oriented packaging

Substrates

Suitable coated paperboard, labels and compatible packaging substrates

Storage

Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally.

Product Brief

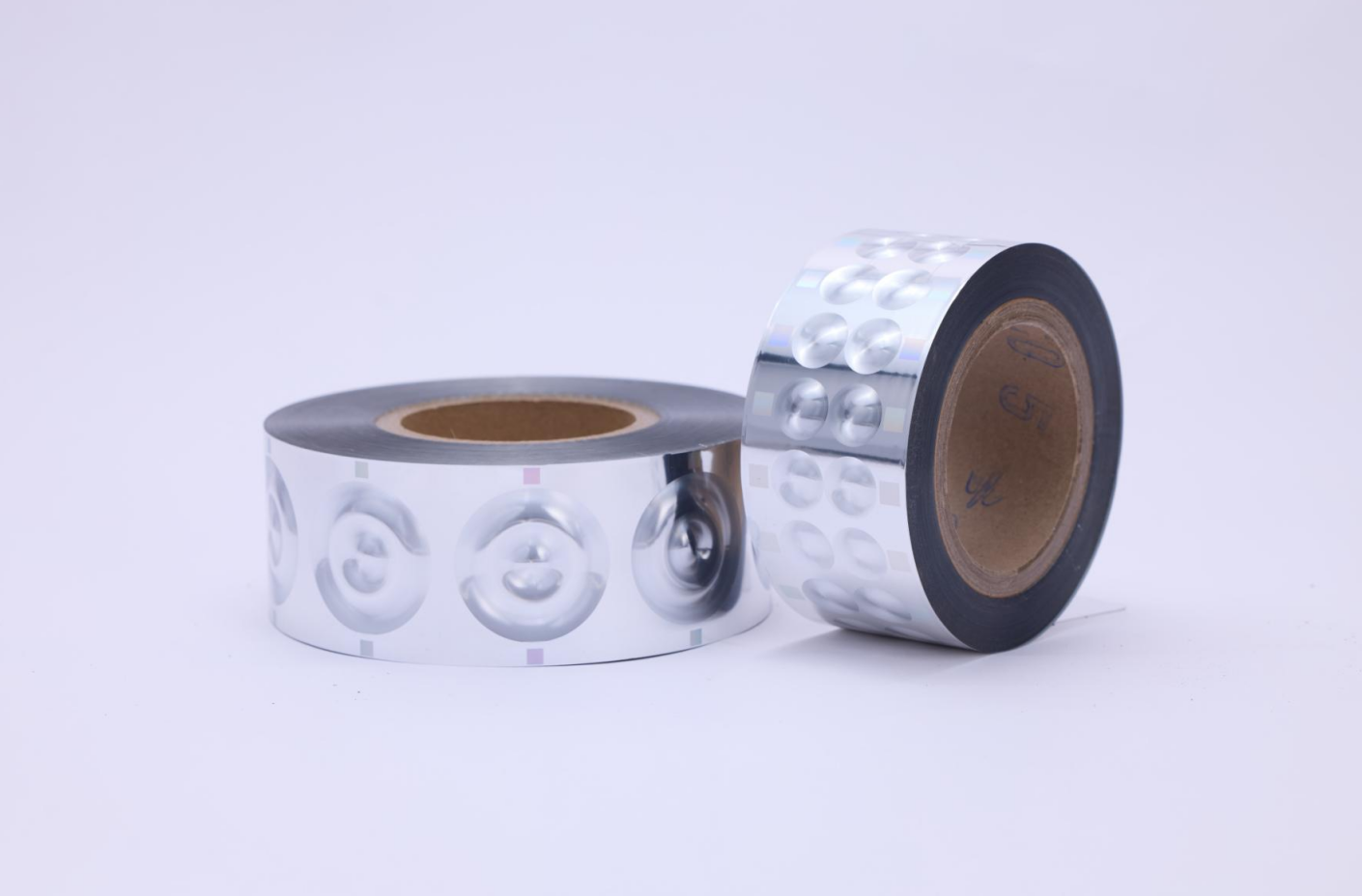

Cat-Eye Registered Holographic Hot Stamping Foils create a concentrated lens-like highlight that must be positioned at a defined point in the printed design. The focal image and its direction are pre-agreed, giving premium cartons and labels a recognizable optical feature with visible depth.

A successful project depends on matching the cat-eye repeat to the dieline, sensor mark, foil pitch and machine direction. Approval therefore focuses on the location of the optical center and its stability through the run, in addition to conventional transfer and adhesion checks.

Technical Specifications & Parameters

Detailed Product Description

Cat-Eye Registered Holographic Hot Stamping Foils use a defined lens-like optical image that must land in a specified position on the package artwork. Selection therefore depends on the approved cat-eye design, repeat length, sensor mark, foil pitch and press registration capability, not only on holographic color.

The effect is intended for suitable coated paperboard, labels and compatible packaging substrates after a registered trial. The cat-eye center and direction should be evaluated on the final dieline because trimming, panel orientation or a change in repeat can move the visual focus away from the intended area.

Key Product Features

A defined cat-eye focal point produces a distinctive moving highlight instead of a free-form custom holographic image.

Registered placement keeps the optical center aligned with the selected logo, emblem or panel position when the correct pitch and sensor data are used.

Production control emphasizes repeat tracking, roll direction and position drift across startup, normal speed and reel changes.

Process and Material Matching

Use registered hot-stamping equipment with optical-sensor tracking and artwork matched to the foil repeat. Confirm sensor-mark contrast, web direction, pitch and die position before adjusting transfer conditions. Registration should be checked across startup, normal speed and reel changes rather than from one isolated impression.

After position is stable, optimize release and adhesion for the approved substrate. Inspect both the transfer edge and the cat-eye alignment against a signed sample. Repeat orders must retain the same artwork version, optical reference, foil pitch, roll direction and registration data.

Primary Industrial Applications

1. Premium packaging: Cat-Eye Registered Holographic Hot Stamping Foils supports carton, label or component decoration where a clear visual finish contributes to shelf recognition and brand consistency.
2. Branded consumer products: The product can be matched to tobacco packaging, spirits cartons, cosmetics, premium gift boxes, brand-protection labels and security-oriented packaging according to the actual substrate and process.
3. Detailed graphics: Logos, borders, typography and controlled decorative areas can be specified with the release behavior suited to the artwork.
4. Production-scale conversion: cat-eye registered holographic hot stamping foils is supplied in custom width and repeat specification according to artwork and press format and custom roll length and repeat layout by project to support sampling, standard production and longer runs.
5. Custom visual programs: Holographic gold, silver, colored optical effects and custom registered patterns allow the visual specification to follow the packaging design while remaining within the verified process route.

Project Selection and Purchasing Information

When requesting cat-eye registered holographic hot stamping foils, provide the substrate name, surface coating or treatment, machine type, transfer method, graphic size, planned speed, downstream printing or lamination steps, preferred color and roll dimensions. This information allows the product version to be matched before the quotation is finalized. A sample image of the substrate and artwork is useful when the surface, curvature or graphic structure cannot be described clearly in words.

Color approval should use the intended substrate because the base color, gloss, texture and printed background influence the apparent finish. The same foil color or optical effect can look different across approved white, dark, smooth, textured, printed or laminated surfaces. For repeat orders, the approved product code, color reference, substrate and process route should remain attached to the purchasing record.

Product identification for cat-eye registered holographic hot stamping foils is application-led, while quotation and order documents identify the exact construction, dimensions, color reference and packing required for the approved job. This keeps purchasing records consistent and makes repeat orders easier to match.

Cat-Eye Pattern Selection Boundary

Choose this product when the registered image is a repeatable cat-eye or lens-style optical feature aligned to the stamped area. Projects requiring a customer-specific logo, artwork or proprietary registered image should be evaluated under Custom Registered Holographic Hot Stamping Foils.

Frequently Asked Questions (FAQ)

Q1: What information is needed to select cat-eye registered holographic hot stamping foils?

Provide the substrate, surface treatment, machine and transfer method, artwork type, production format, required finish and any later printing, lamination or converting steps. These details determine the appropriate product version more reliably than color alone.

Q2: Which substrates are suitable for cat-eye registered holographic hot stamping foils?

The stated range is Suitable coated paperboard, labels and compatible packaging substrates. Suitability depends on the exact coating, surface treatment and process. Materials outside this range should not be assumed compatible from appearance alone.

Q3: What colors and effects are available?

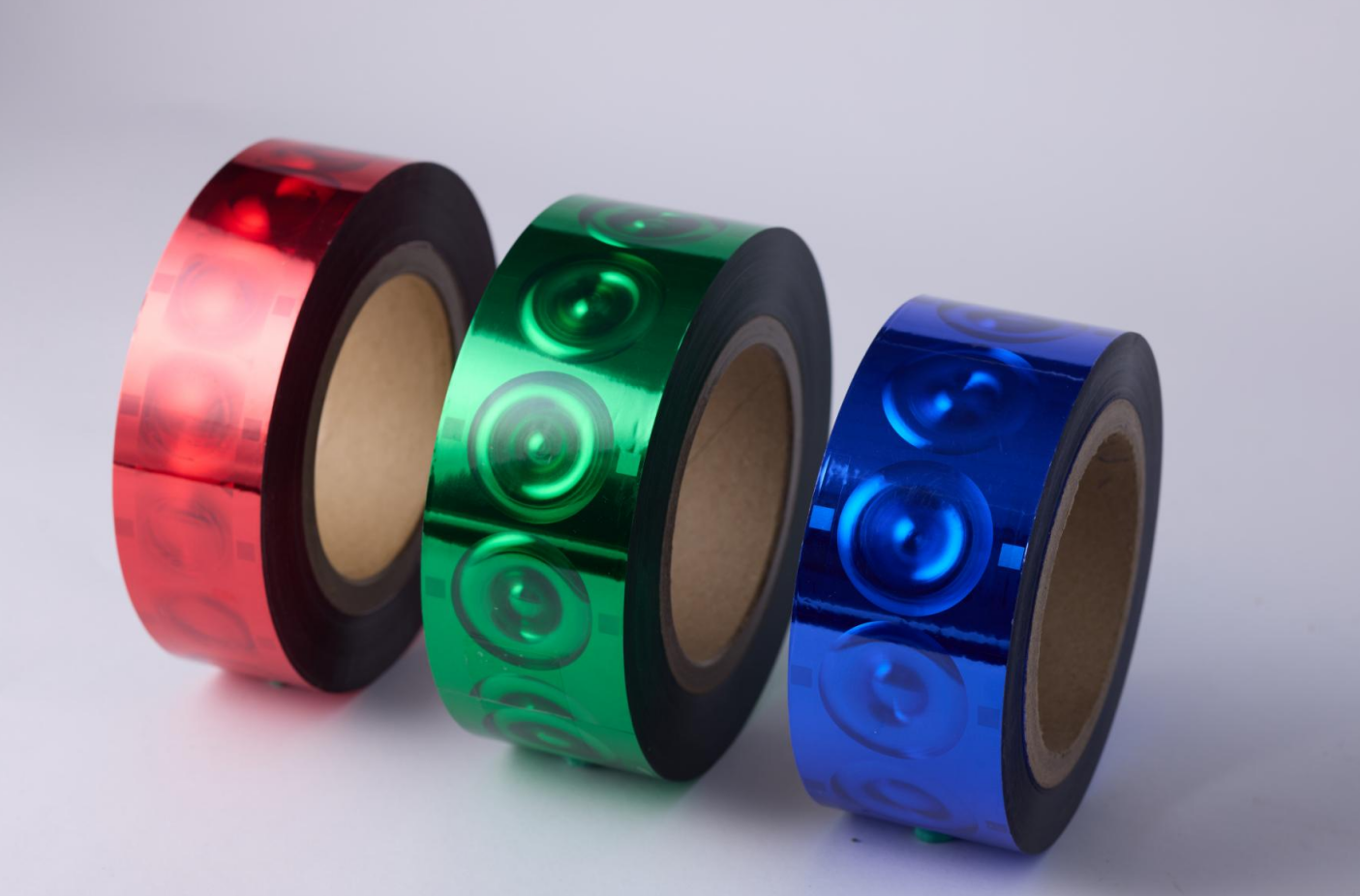

Standard and project options include Holographic gold, silver, colored optical effects and custom registered patterns. Availability is confirmed against the required process, quantity and approved visual reference.

Q4: What operating range should be used?

Hot stamping range selected according to foil construction, substrate and registration equipment. Production speed is governed by repeat control, sensor stability and graphic registration. The working point is selected within this range according to the press, substrate, graphic area and converting sequence.

Q5: How should cat-eye registered holographic hot stamping foils be stored?

Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally. Keep the roll protected from pressure, edge damage, dust and condensation, and retain the product identification for repeat-order control.
