Advantages

A custom registered hot stamping solution that places a brand-specific holographic pattern at a controlled position. Custom optical artwork; Registered placement; Supports distinctive brand identity and security-oriented packaging.

Tech Specs & Notes

Registered hot stamping with optical-sensor tracking and artwork matched to the foil repeat. Hot stamping range selected according to foil construction, substrate and registration equipment. Artwork repeat, sensor mark, foil pitch and press geometry must be aligned as one registered system. Optical requirements are specified separately from the production artwork and repeat data.

Markets

Tobacco packaging, spirits cartons, cosmetics, premium gift boxes, brand-protection labels and security-oriented packaging

Substrates

Suitable coated paperboard, labels and compatible packaging substrates

Storage

Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally.

Product Brief

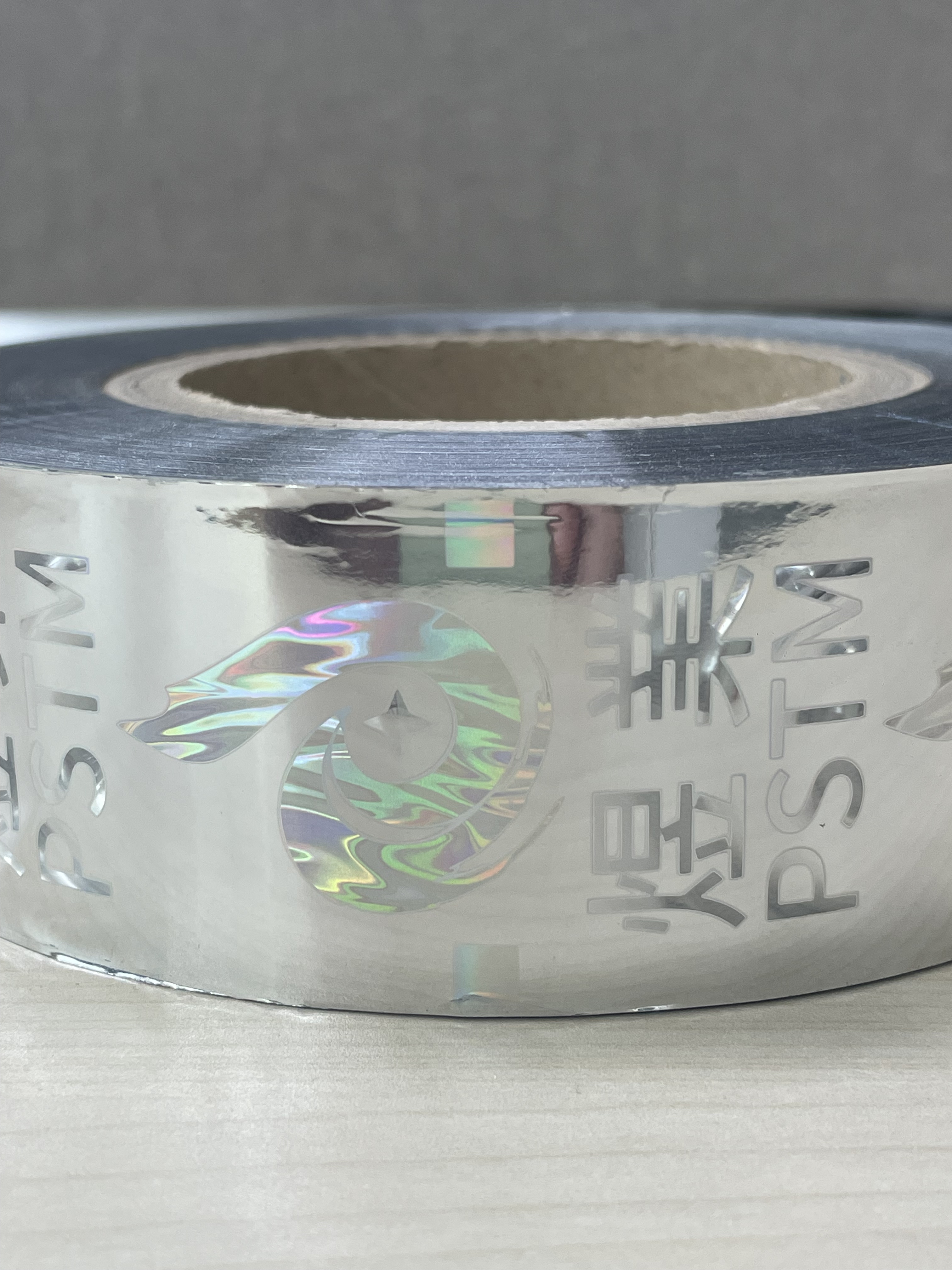

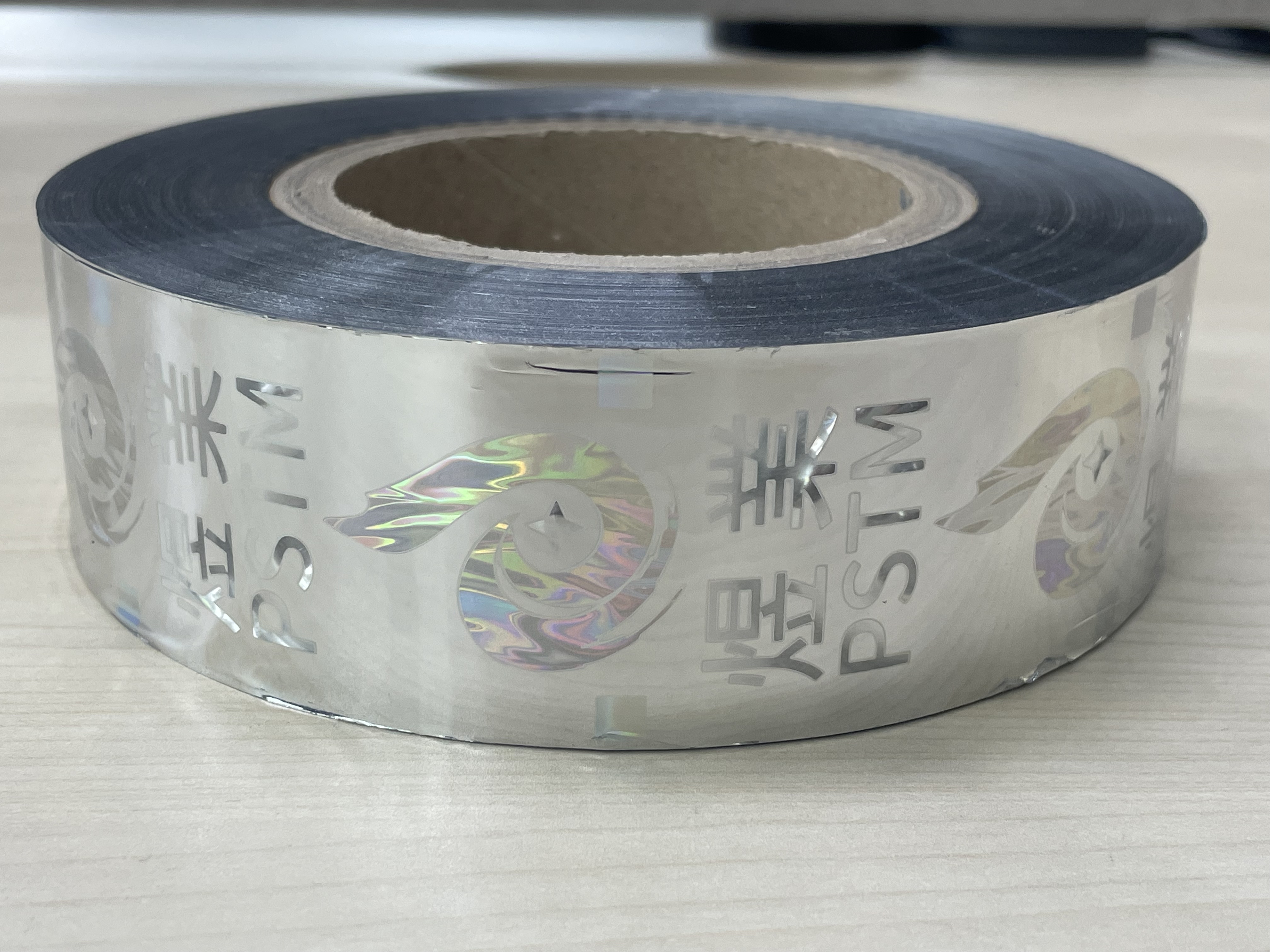

Custom Registered Holographic Hot Stamping Foils translate customer-approved optical artwork into a controlled registered transfer. The image can incorporate a proprietary motif, branded symbol or security-oriented visual structure developed around the package design rather than a standard cat-eye lens.

The project begins with artwork ownership and version control, then defines master reference, repeat, pitch, roll direction and sensor information. Both the optical master and the stamped package sample require approval because a change in dieline, varnish or printed background may alter the final appearance.

Technical Specifications & Parameters

Detailed Product Description

Custom Registered Holographic Hot Stamping Foils are developed around customer-approved optical artwork and a defined registration relationship with the printed package. The design may contain a branded motif, controlled image or other custom holographic element, so artwork ownership, master reference, repeat length and sensor data form part of the product specification.

Suitable coated paperboard, labels and compatible packaging substrates must be tested with the final print and coating. A custom holographic image can appear different when the base color, varnish or panel orientation changes. Approval should cover both the optical master and the stamped production sample.

Key Product Features

Customer-specific optical artwork supports differentiated branding and controlled visual authentication within the registered area.

Master reference and artwork version are managed as production specifications, reducing the risk of using a visually similar but incorrect image on repeat orders.

Custom repeat and roll-direction data are coordinated with the converter's registration system before sampling and commercial production.

Process and Material Matching

The converter should provide the dieline, artwork repeat, sensor mark, web direction, foil pitch and registration tolerance before sampling. Optical-sensor tracking and die position must be matched to those values. A change to package dimensions or artwork version can require a new registration assessment even when the substrate is unchanged.

Once alignment is confirmed, establish the transfer window for the actual coating and graphic area. Record the approved master reference, foil code, pitch, roll direction, substrate and press recipe. This control prevents a visually similar but incorrectly registered construction from being substituted on a repeat order.

Primary Industrial Applications

1. Premium packaging: Custom Registered Holographic Hot Stamping Foils supports carton, label or component decoration where a clear visual finish contributes to shelf recognition and brand consistency.
2. Branded consumer products: The product can be matched to tobacco packaging, spirits cartons, cosmetics, premium gift boxes, brand-protection labels and security-oriented packaging according to the actual substrate and process.
3. Detailed graphics: Logos, borders, typography and controlled decorative areas can be specified with the release behavior suited to the artwork.
4. Production-scale conversion: custom registered holographic hot stamping foils is supplied in custom width and repeat specification according to artwork and press format and custom roll length and repeat layout by project to support sampling, standard production and longer runs.
5. Custom visual programs: Holographic gold, silver, colored optical effects and custom registered patterns allow the visual specification to follow the packaging design while remaining within the verified process route.

Project Selection and Purchasing Information

When requesting custom registered holographic hot stamping foils, provide the substrate name, surface coating or treatment, machine type, transfer method, graphic size, planned speed, downstream printing or lamination steps, preferred color and roll dimensions. This information allows the product version to be matched before the quotation is finalized. A sample image of the substrate and artwork is useful when the surface, curvature or graphic structure cannot be described clearly in words.

Color approval should use the intended substrate because the base color, gloss, texture and printed background influence the apparent finish. The same foil color or optical effect can look different across approved white, dark, smooth, textured, printed or laminated surfaces. For repeat orders, the approved product code, color reference, substrate and process route should remain attached to the purchasing record.

Product identification for custom registered holographic hot stamping foils is application-led, while quotation and order documents identify the exact construction, dimensions, color reference and packing required for the approved job. This keeps purchasing records consistent and makes repeat orders easier to match.

Custom Artwork Versus Cat-Eye Optics

This page owns customer-specific registered logos, proprietary patterns and artwork-aligned holographic images. If the required feature is a standard cat-eye or lens-style registered optical effect rather than custom brand artwork, review Cat-Eye Registered Holographic Hot Stamping Foils.

Frequently Asked Questions (FAQ)

Q1: What information is needed to select custom registered holographic hot stamping foils?

A1: Provide the substrate, surface treatment, machine and transfer method, artwork type, production format, required finish and any later printing, lamination or converting steps. These details determine the appropriate product version more reliably than color alone.

Q2: Which substrates are suitable for custom registered holographic hot stamping foils?

A2: The stated range is Suitable coated paperboard, labels and compatible packaging substrates. Suitability depends on the exact coating, surface treatment and process. Materials outside this range should not be assumed compatible from appearance alone.

Q3: What colors and effects are available?

A3: Standard and project options include Holographic gold, silver, colored optical effects and custom registered patterns. Availability is confirmed against the required process, quantity and approved visual reference.

Q4: What operating range should be used?

A4: Hot stamping range selected according to foil construction, substrate and registration equipment. Production speed is governed by repeat control, sensor stability and graphic registration. The working point is selected within this range according to the press, substrate, graphic area and converting sequence.

Q5: How should custom registered holographic hot stamping foils be stored?

A5: Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally. Keep the roll protected from pressure, edge damage, dust and condensation, and retain the product identification for repeat-order control.
