Product Brief

Random-Pattern Security Holographic Hot Stamping Foils create a continuous optical security cue across selected packaging areas. The DH3 route is designed for hot stamping where a random holographic structure is preferred over a fixed-position registered image. A random pattern holographic foil can fill logos, bands, seals and broader decorative panels without aligning one motif to every carton.

The product combines the definition and opacity of a holographic hot stamping foil with non-registered optical variation. Heat, pressure and contact time transfer the decorative layer through the die. The security hologram foil must still be matched to the paperboard or label surface, artwork coverage and downstream converting sequence.

Technical Specifications & Parameters

Choose random optical coverage when exact motif placement is unnecessary

Registered holographic foil requires a defined repeat and sensor-controlled alignment. Random pattern holographic foil is different: the optical structure continues across the roll, while the metal die defines where transfer occurs. This makes it practical for decorative security fields that need movement and variation but do not require a logo or lens to sit at one exact coordinate.

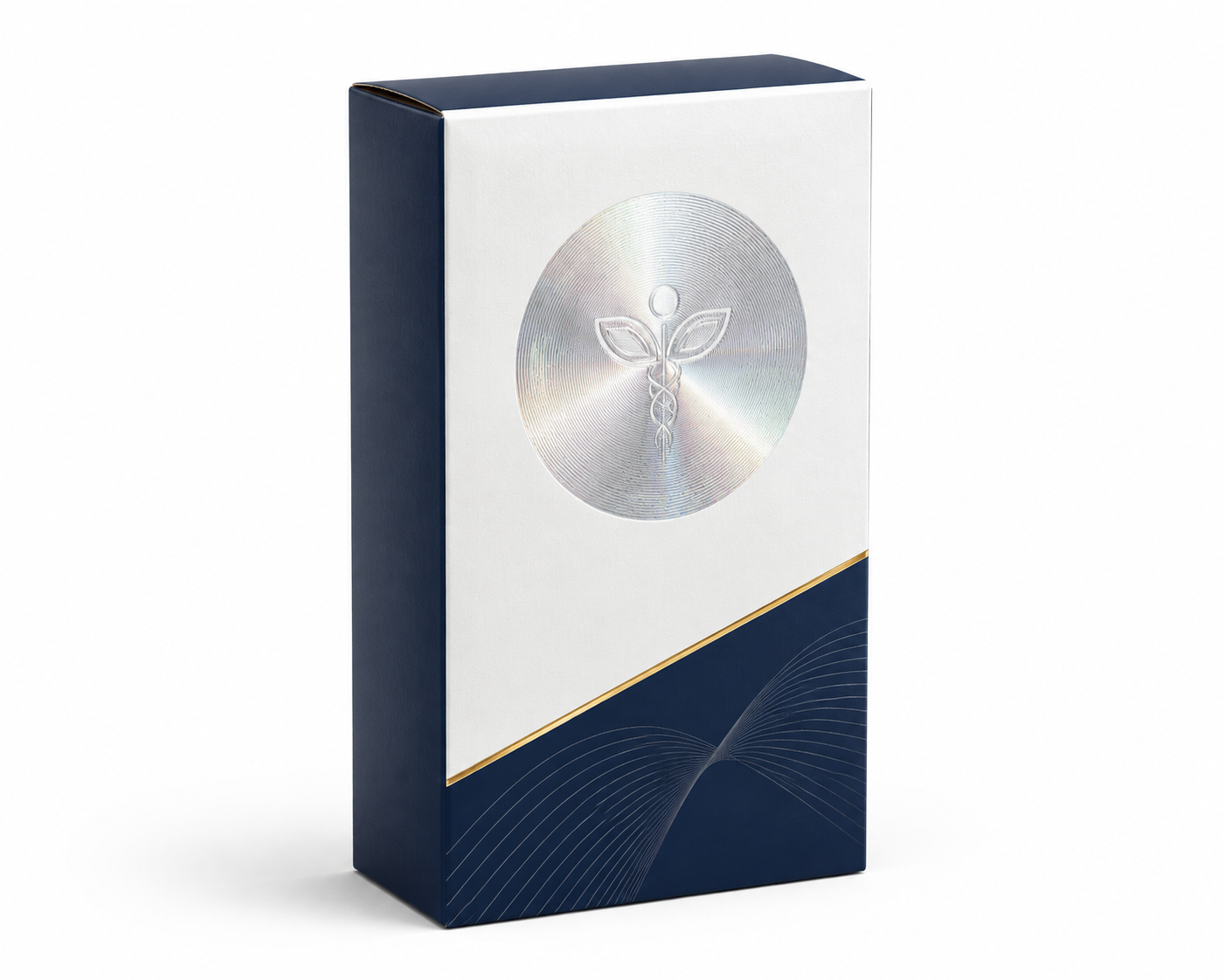

The security hologram foil is appropriate for spirits cartons, cosmetics, premium gift boxes, tobacco packaging and brand-protection labels where the effect supports recognition. If the customer's inspection process requires fixed microtext, a registered logo or controlled lens placement, specify a registered product rather than this random-pattern route.

Use artwork coverage to select release behavior

Fine lettering and narrow borders need clean release without bridging. Large solids need even die contact and stable coverage. A mixed design can expose competing requirements, so include both a detail block and a solid block in the trial. The holographic hot stamping foil construction and press recipe should be approved against the dominant graphic area.

Pattern density also affects perception. A fine security pattern can read as texture at normal distance; a larger structure creates stronger movement. Approve the random pattern holographic foil at the final package size and under realistic light. A roll sample viewed close to the eye can overstate how active the pattern will appear on shelf.

Control die contact and substrate compatibility

Begin with the finished substrate, including ink, coating or lamination. Low-energy varnish, silicone, wax, powder, dust and incomplete cure can weaken transfer. If the image fails only over the coated area, investigate surface compatibility before repeatedly raising temperature. A matched adhesive layer is more effective than forcing an unsuitable foil with extreme settings.

Establish heat, pressure and dwell time through controlled test strips. Patchy transfer in one fixed position can indicate make-ready or die leveling. Filled-in detail can indicate excess heat, pressure or contact time. The approved security hologram foil result should remain complete after cooling and pass the required tape, rub, fold or abrasion test.

Protect repeatability through identification and inspection

Record the holographic pattern code, approved visual sample, foil construction, substrate, die, machine and working range. Visually similar random patterns can create a different brand impression, so the pattern reference belongs in the purchasing specification together with color and roll dimensions.

Random-pattern decoration is one security layer, not a complete authentication system. Define the expected inspection method and combine it with other visible, covert, registered or digital controls where the risk requires more than visual differentiation. This keeps the holographic hot stamping foil claim aligned with its real function.

Key Product Features

• Continuous random holographic pattern without fixed-image alignment
• Hot stamping definition for logos, bands, seals and broader areas
• Security-oriented visual cue for premium packaging
• Pattern, color and roll format controlled by approved reference
• Suitable for integration with additional authentication layers

Frequently Asked Questions (FAQ)

Q1: Does this foil require registered repeat control?

A1: No fixed holographic motif is aligned to each package. The press still controls normal die-to-print position and foil feed.

Q2: Can it replace a registered logo hologram?

A2: No. Use a registered product when a specific image, lens or microtext must appear at a controlled position.

Q3: How should a pattern be approved?

A3: Evaluate a physical sample at final package scale under representative lighting and retain the approved pattern code and master sample.

Q4: Which production tests are required?

A4: Confirm transfer definition and the end-use properties that matter, such as tape adhesion, rub, folding, abrasion and downstream coating compatibility.
