Advantages

An inline sheet-fed cold foil route that adds holographic diffraction to cartons and premium print before optional overprinting. Holographic optical effect in an offset cold foil workflow; Inline transfer without a heated stamping die; Suitable for large visual areas and layered color design.

Tech Specs & Notes

Inline sheet-fed offset cold foiling with compatible UV cold foil adhesive and curing system. No heated stamping die is required; adhesive, curing and press settings determine transfer. The system requires compatible adhesive, complete curing and controlled overprinting inks. Graphic coverage and surface smoothness affect transfer quality.

Markets

FMCG cartons, cosmetics, personal care, premium publishing, promotional print and high-impact folding cartons

Substrates

Coated paper, folding boxboard and compatible non-absorbent laminated paper surfaces

Storage

Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally.

Product Brief

Holographic Sheet-Fed Offset Cold Foils is developed for sheet-fed holographic cold foil and printed optical effects. An inline sheet-fed cold foil route that adds holographic diffraction to cartons and premium print before optional overprinting. The product is positioned for industrial packaging and print buyers who need a clear match between foil construction, substrate, decoration process and end-use handling. Selection is organized around the application method, surface type and required visual effect so the production construction can be matched to the real job.

For a production project, holographic sheet-fed offset cold foils should be selected together with the actual substrate, surface coating, machine type, graphic area and downstream converting steps. Available finishes include Holographic gold, silver, plain rainbow, light-pillar and selected patterned effects. This makes the product suitable for fmcg cartons, cosmetics, personal care, premium publishing, promotional print and high-impact folding cartons, while the final construction remains aligned with the requested process and material.

Technical Specifications & Parameters

Detailed Product Description

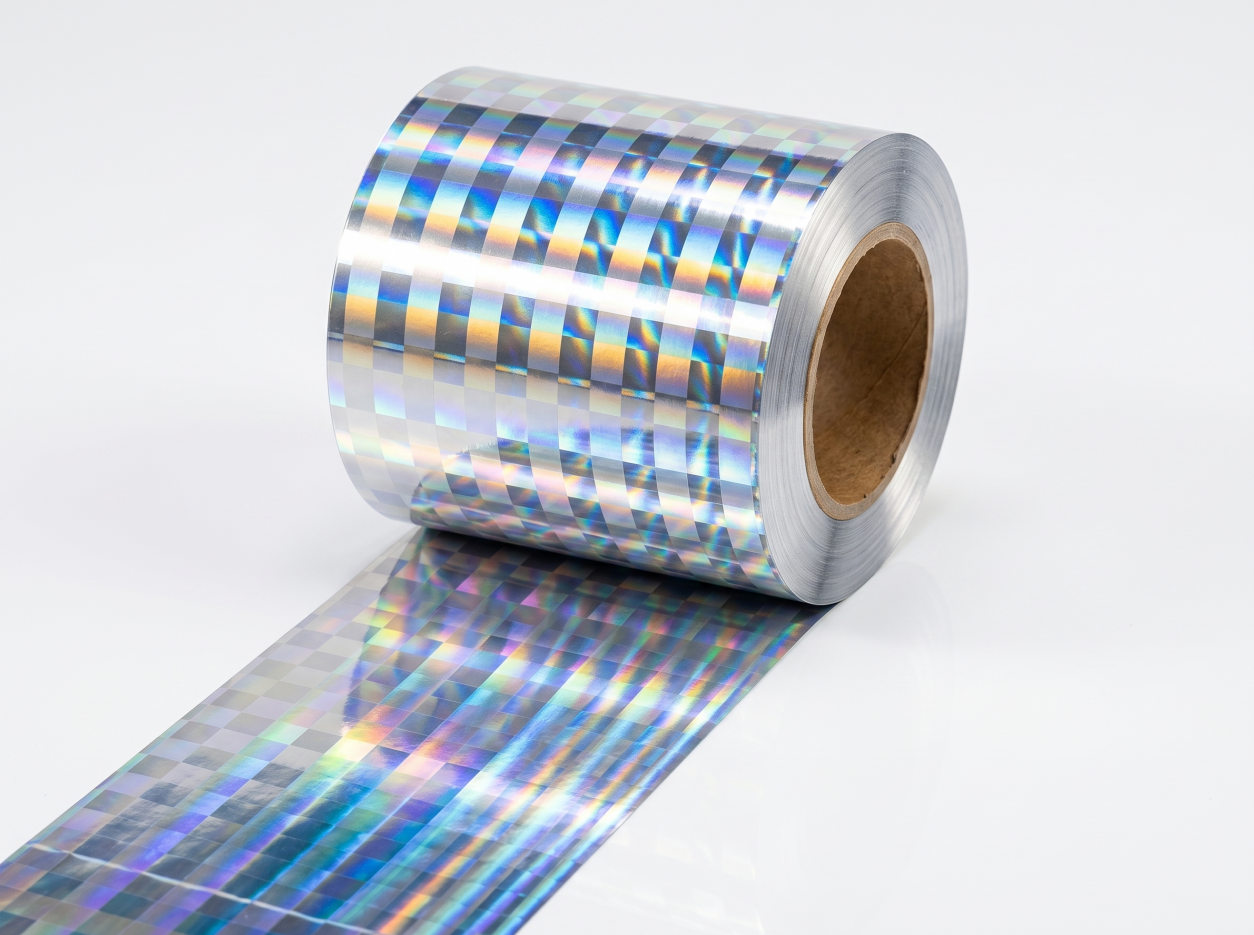

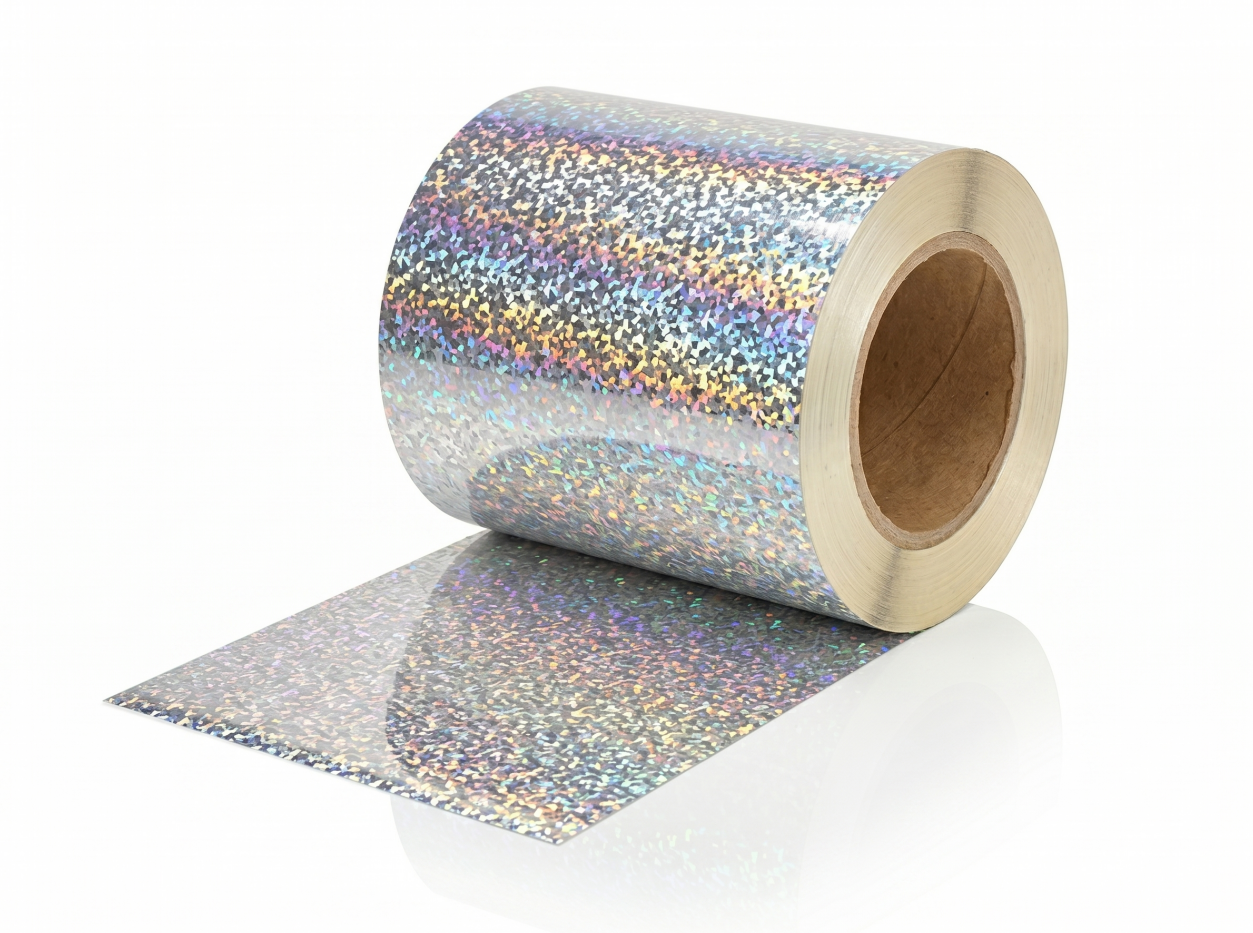

Holographic Sheet-Fed Offset Cold Foils combine inline sheet-fed cold-foil transfer with a diffractive optical effect. The product is used on compatible coated paper, folding boxboard and selected laminated paper when the design requires rainbow, light-pillar or another approved holographic appearance without hot-stamping tooling.

Optical pattern, orientation and base surface are part of the selection. A transfer may be mechanically complete but still look weak if the board is uneven, the adhesive film is inconsistent or the pattern is too small for the graphic. Physical approval should therefore assess diffraction as well as edge quality and adhesion.

Key Product Features

• Holographic optical effect in an offset cold foil workflow: This capability supports sheet-fed holographic cold foil and printed optical effects while keeping the product selection tied to the real press, surface and converting route.
• Inline transfer without a heated stamping die: This capability supports sheet-fed holographic cold foil and printed optical effects while keeping the product selection tied to the real press, surface and converting route.
• Suitable for large visual areas and layered color design: This capability supports sheet-fed holographic cold foil and printed optical effects while keeping the product selection tied to the real press, surface and converting route.
• Application-led selection: holographic sheet-fed offset cold foils is specified by substrate, process and graphic area so the ordered production version remains properly matched.
• Controlled visual consistency: Color, brightness, diffraction or texture is designed to remain uniform across the stated substrate and process route.
• Practical converting fit: The product description accounts for later printing, lamination, embossing, cutting, folding or label conversion where those steps are part of the selected workflow.

Process and Material Matching

The press must print a compatible adhesive, cure it correctly and maintain uniform nip contact before separation. Holographic discontinuities make small voids more visible under changing angles, so adhesive coverage and board smoothness require close control. Overprinting inks must be compatible with the transferred surface and curing sequence.

During approval, view samples under more than one lighting angle and confirm pattern direction across the sheet. Record foil orientation, adhesive system, curing output, speed and substrate batch. This separates optical-repeat requirements from the standard metallic cold-foil workflow.

Primary Industrial Applications

1. Premium packaging: Holographic Sheet-Fed Offset Cold Foils supports carton, label or component decoration where a clear visual finish contributes to shelf recognition and brand consistency.
2. Branded consumer products: The product can be matched to fmcg cartons, cosmetics, personal care, premium publishing, promotional print and high-impact folding cartons according to the actual substrate and process.
3. Detailed graphics: Logos, borders, typography and controlled decorative areas can be specified with the release behavior suited to the artwork.
4. Production-scale conversion: holographic sheet-fed offset cold foils is supplied in production width and slitting matched to the offset press and foil unit and roll length configured for the production line and order quantity to support sampling, standard production and longer runs.
5. Custom visual programs: Holographic gold, silver, plain rainbow, light-pillar and selected patterned effects allow the visual specification to follow the packaging design while remaining within the verified process route.

Project Selection and Purchasing Information

When requesting holographic sheet-fed offset cold foils, provide the substrate name, surface coating or treatment, machine type, transfer method, graphic size, planned speed, downstream printing or lamination steps, preferred color and roll dimensions. This information allows the product version to be matched before the quotation is finalized. A sample image of the substrate and artwork is useful when the surface, curvature or graphic structure cannot be described clearly in words.

Color approval should use the intended substrate because the base color, gloss, texture and printed background influence the apparent finish. The same foil color or optical effect can look different across approved white, dark, smooth, textured, printed or laminated surfaces. For repeat orders, the approved product code, color reference, substrate and process route should remain attached to the purchasing record.

Product identification for holographic sheet-fed offset cold foils is application-led, while quotation and order documents identify the exact construction, dimensions, color reference and packing required for the approved job. This keeps purchasing records consistent and makes repeat orders easier to match.

Holographic Versus Plain Metallic Selection

This page is for sheet-fed offset cold-foil projects that require visible diffraction, rainbow movement or a holographic optical pattern. For a clean mirror gold, silver or other non-holographic metallic layer, select Metallic Sheet-Fed Offset Cold Foils.

Frequently Asked Questions (FAQ)

Q1: What information is needed to select holographic sheet-fed offset cold foils?

Provide the substrate, surface treatment, machine and transfer method, artwork type, production format, required finish and any later printing, lamination or converting steps. These details determine the appropriate product version more reliably than color alone.

Q2: Which substrates are suitable for holographic sheet-fed offset cold foils?

The stated range is Coated paper, folding boxboard and compatible non-absorbent laminated paper surfaces. Suitability depends on the exact coating, surface treatment and process. Materials outside this range should not be assumed compatible from appearance alone.

Q3: What colors and effects are available?

Standard and project options include Holographic gold, silver, plain rainbow, light-pillar and selected patterned effects. Availability is confirmed against the required process, quantity and approved visual reference.

Q4: What operating range should be used?

No heated stamping die is required; adhesive, curing and press settings determine transfer. Machine-dependent sheet-fed line speed, adjusted for adhesive curing, surface and graphic coverage. The working point is selected within this range according to the press, substrate, graphic area and converting sequence.

Q5: How should holographic sheet-fed offset cold foils be stored?

Store sealed in the original packaging, away from direct sunlight, heat and humidity. Recommended storage is 5-35°C. Use within 12 months from shipment and keep long rolls supported horizontally. Keep the roll protected from pressure, edge damage, dust and condensation, and retain the product identification for repeat-order control.
